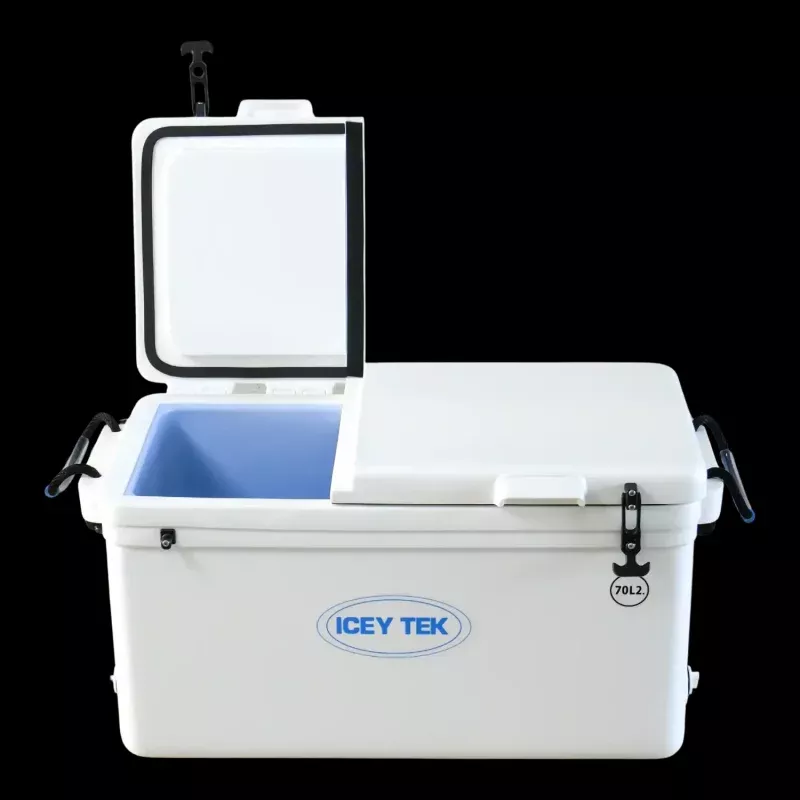

This is the same dimensions as our other 70 litre ice box, the only difference is the split lid.
The lid can be opened partly for quick access, without losing too much cold air, or it can be opened fully, to access all contents with-inthe box.
Each 70L ice boxis fitted with 4Heavy Duty Injection Moulded Hinges, which stop just past 90 degrees. These are strong and prevent having rope inside the box to stop the lids from flipping back.
Thelid is split into 2 sections, being 330mm and 450mm. There is a 25mm overlap, giving the overall lid length around 780mm. The small side has 2hinges and the large side has 2 hinges.
The wall thickness ranges from 80mm thick in the lid where it needs the most insulation.To 40mm to 45mm thick in the base and sides. This gives our coolers great thermal insulation without being overly heavy.
External Dimensions
Length – 850mm
Height – 445mm
Width – 435mm
Internal Dimensions
Length – 695mm
Height – 350mm
Width – 310mm
Weight – 12.5kg
Lid height when open – 875mm
Lid Lip – 28mm
