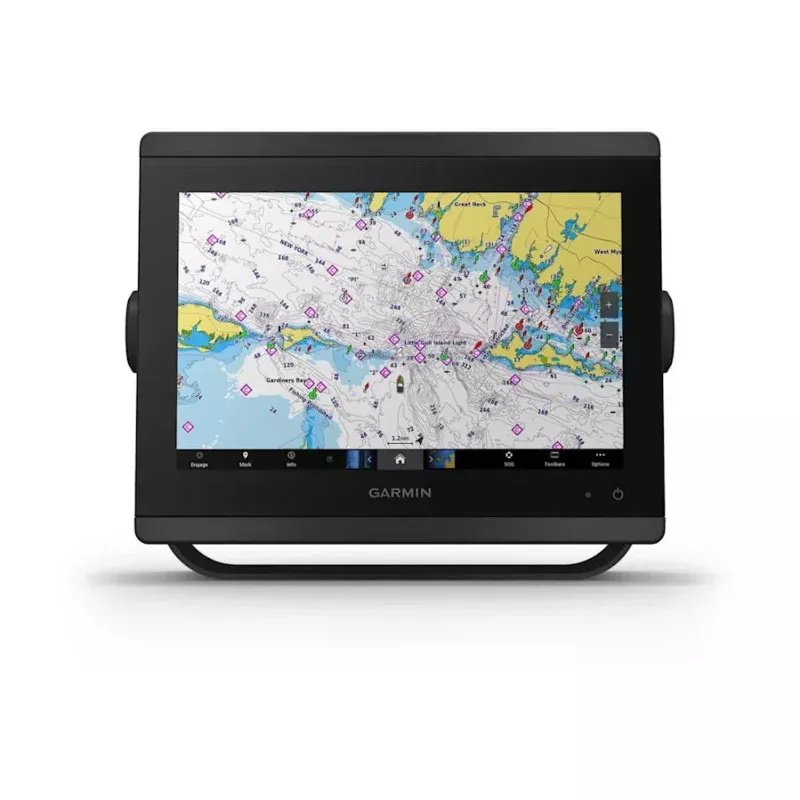

Garmin GPSMAP 8410xsv

The easy-to-use, easy-to-install chartplotter/sonar combo delivers MFD performance in a combo-size package.

HD IPS TOUCHSCREEN

Available in 10, 12 or 16, this display offers wider viewing angles, superior clarity and sunlight readability, even with polarized sunglasses.

SIMPLE, ATTRACTIVE MOUNTING OPTIONS

You can install multiple displays, either flat mounted edge-to-edge for a sleek glass helm look or mounted flushcreating a stunning helm.

TRADITIONAL AND SCANNING SONAR SUPPORT

Get built-in support for 1-kW Dual-Channel CHIRP traditional sonar for superior target separation and ClearV and SideV scanning sonars to see up to 1,000 below and around your boat at 260 kHz (requires transducer, sold separately). Built-in sonar compabiliity only available on xsv models.

CHARTS & MAPS

Bring a fresh new look and feel to your chartplotter with optional Garmin Navionics+ or premium Garmin Navionics Vision+ cartography featuring integrated coastal/inland content, access to daily updates, Auto Guidance+ technology²and more.

General

Dimension 10.25″ x 8.0625″ x 2.95″ (25.9 cm x 20.5 cm x 7.5 cm) Weight

5.2 lbs (2.4 kg)

Water rating

IPX7

Touchscreen Display Type WUXGA, IPS Display Size 8.6″ x 5.4″; 10.1″ diagonal (21.8 cm x 13.7 cm; 25.7 cm diagonal) Display Resolution 1920 x 1200 pixels Mounting Options Bail, flat or flush (Garmin does not offer any hardware or accessories for a flat-mount installation. Professional tools and knowledge is required.)
