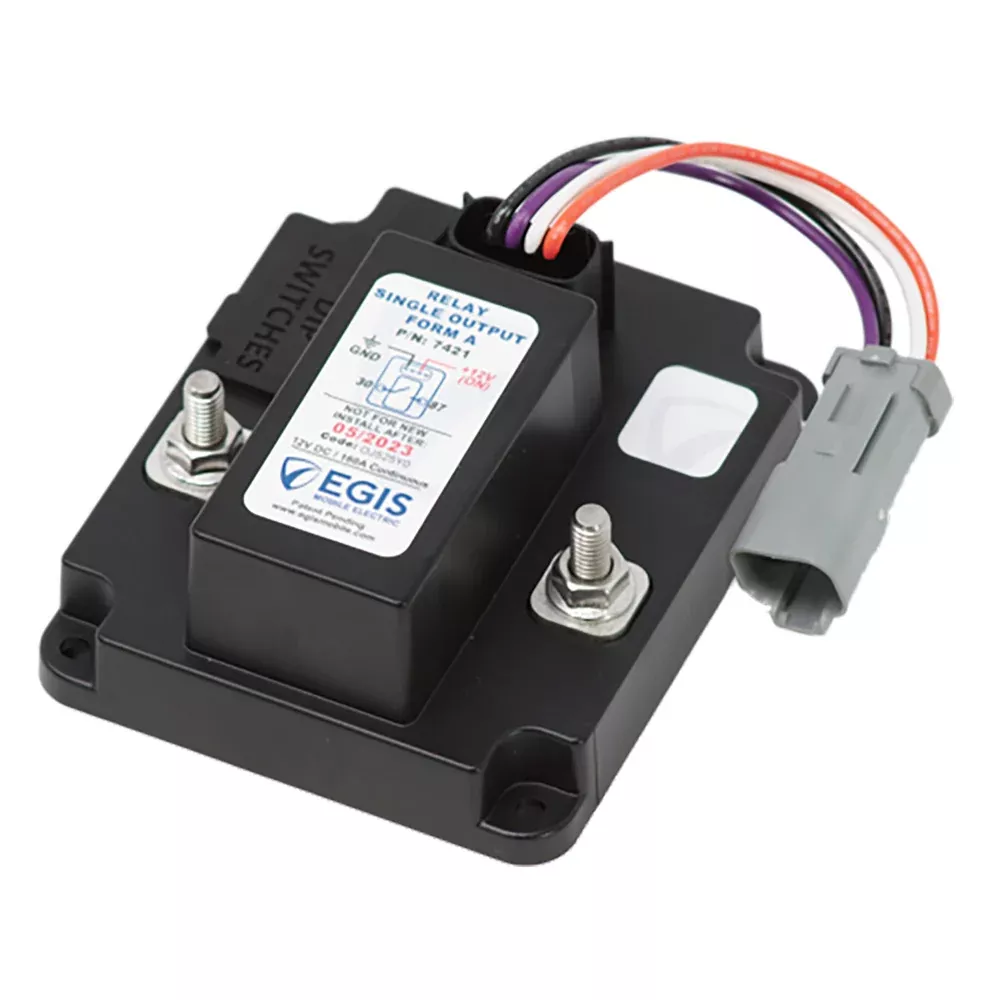

Egis TH3 Relay 160A – 12V [7421]

TH3 Relay 160A – 12V

Features:

• Replaces Manual Battery Switches: Reduces battery cable run lengths and resulting voltage drop
• Connect to the Ignition Signal for simple battery charge management between two batteries or for simple auxiliary load disconnection.
• Connect to TH Series Automatic Charging Relays or Time Delay Relays to provide an additional isolated/switched output or to extend current-carrying capability
• Simple & Robust Installation: Sealed MX-150 plug/harness with 2ft control wires included. Reduces install time/costs. The optional output bus bar provides a simple, compact connection to the RT or CT fuse block product families.
• Bullet-proof Construction: Sealed unit, high-temperature materials allow mounting anywhere on the vehicle. Stainless steel self-locking hardware
• Single or Dual Split Output Options provide flexibility for different electrical system requirements
• Integral Diode Suppression reduces voltage spikes on control lines during switching

Specifications:

• Type: Electric
• Box Dimensions: 3″H x 6″W x 7″L WT: 0.75 lbs
• UPC: 850035199893

Brochure (pdf)
